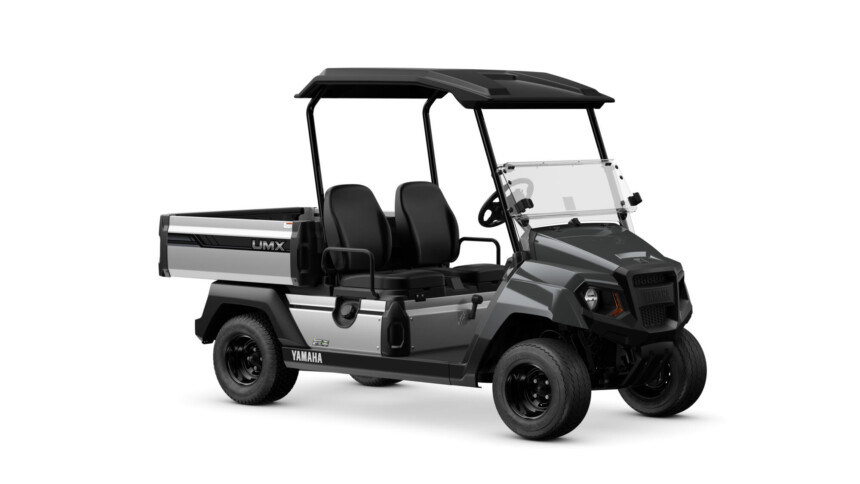

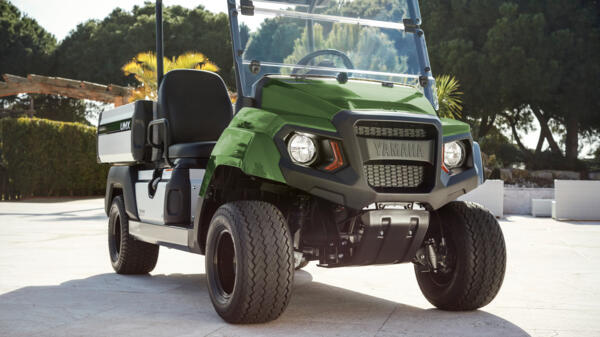

Yamaha UMAX EFI Petrol Utility Vehicle

Whether it’s chosen for a large-scale commercial property or simply to assist with the everyday workload on a smaller estate or farm, the UMX EFI is the perfect workhorse. It’s easy-to-drive smoothness and proven reliability make it the perfect choice.

At the heart of this compact workhorse is a well proven, easy-starting and punchy 400cc EFI engine that delivers smooth, efficient power to take it just about anywhere in a park, resort, golf course, farm, airport, factory … just point and go

The two ergonomically designed individual seats and variable rate suspension system work together to give a high standard of rider comfort, making this nimble and easy-to-manoeuvre light utility vehicle a real pleasure to work with – and it’s ready to work hard for you, 24/7.

-Light utility and maintenance vehicle
-Tough, stylish and compact design

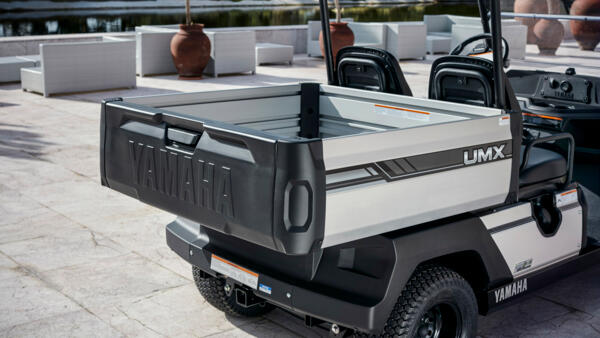

-Aluminium cargo bed with one-touch tailgate

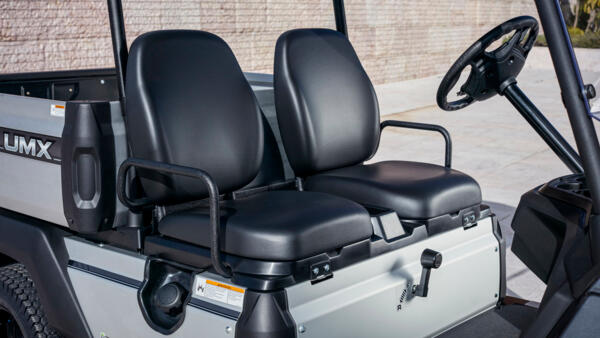

-Two individual seats with centre console

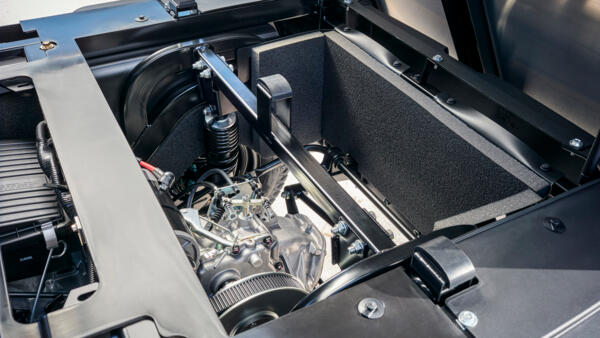

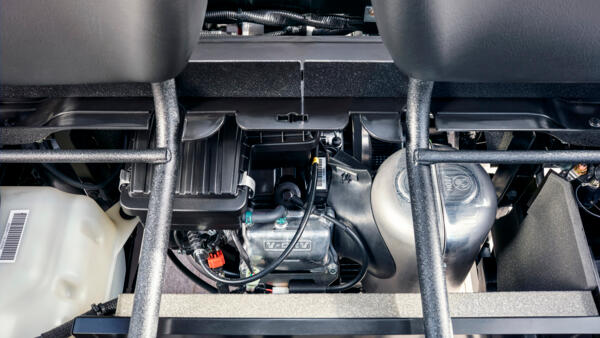

-Smooth and reliable 400cc EFI petrol engine

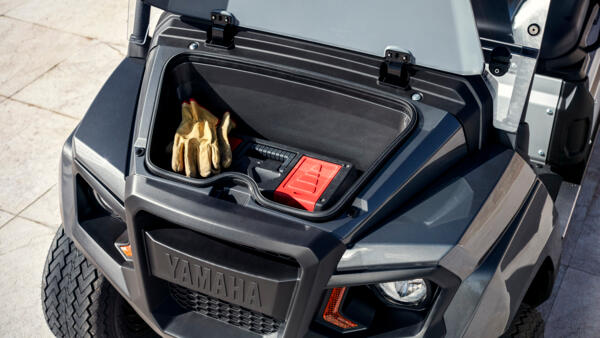

-29-Litre front storage box – one-touch opening

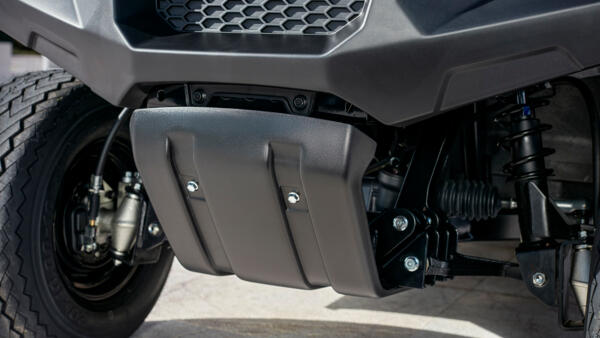

-Skid plate for non-extreme off-road situations
-Convenient filler location for re-fuelling
-Wide tyres for comfort on and off-road
-Strong reflector-type LED light units

A huge range of addons and accessories are available so get in touch to get yours spec’d up to the ideal utility vehicle!

Machine Specifications

POWER SUPPLY/DRIVE TRAIN
Engine type
OHV, EFI, 4-stroke, Gasoline
Displacement
402 cm3
Bore x stroke
85.0 mm x 70.8 mm
Horsepower
9.4kW(12.6 hp) @3600rpm
Compression ratio
8.2:1
Lubrication system
Splash-style positive oil lubrication
Oil tank capacity
1,1 litres
Ignition system
TCI

DIAMENTIONS
Overall length
3,032 mm
Overall width
1,253 mm
Overall height (sun top)
1,824 mm
Wheel base
1,961 mm
Front wheel tread
1,023 mm
Rear wheel tread
1.021 mm
Minimum ground clearance
115 mm
Floor board height
332 mm

CHASSIS
Frame
Automotive style HybriCore™ Chassis, polyester/urethane powder topcoat
Body
Thermoplastic olefin, 2-part top coat of automotive-grade polyurethane
Steering
Rack and pinion
Front suspension
Strut suspension
Rear suspension
Mono-linkage
Brakes
Self-adjusting, mechanical drum brakes on all 4 wheels
Seating
Bucket seats made of polyurethane foam bonded to a durable vinyl cover

PERFORMANCE
Maximum forward speed
31 km/h
Turning radius
4.0 metre

GENERAL
Dry weight
455.4 kg
Cargo bed capacity
363 kg
Cargo bed size (LxWxH)
1,046mm x 1,166 mm x 302 mm
Fuel tank capacity
20 litres
Tyre size
20 x 10 -10 (4 ply rated)
Seating capacity
2 persons

AVAILABLE COLOURS
-Carbon
-Leaf Green
-Glacier
-Aqua Blue
