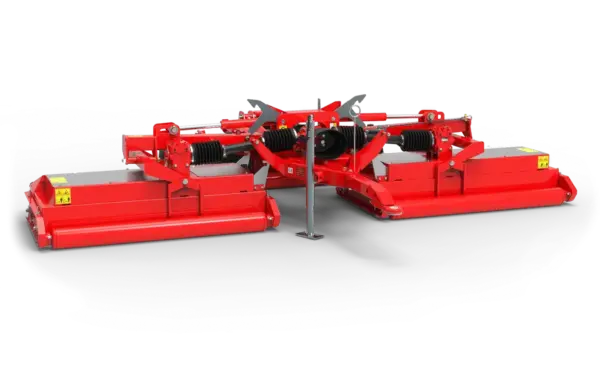

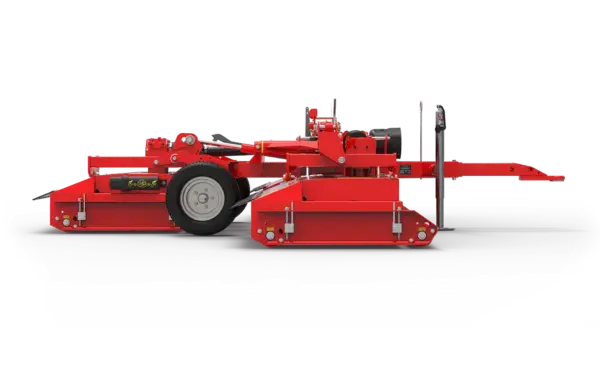

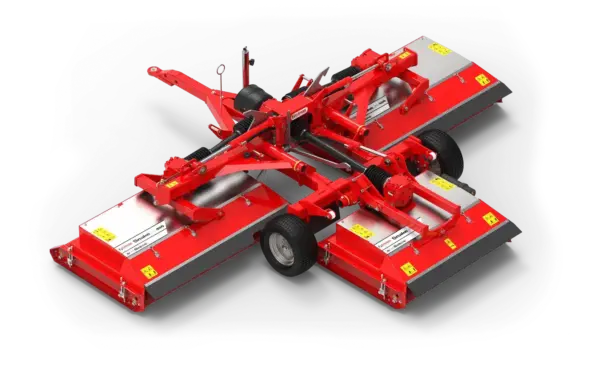

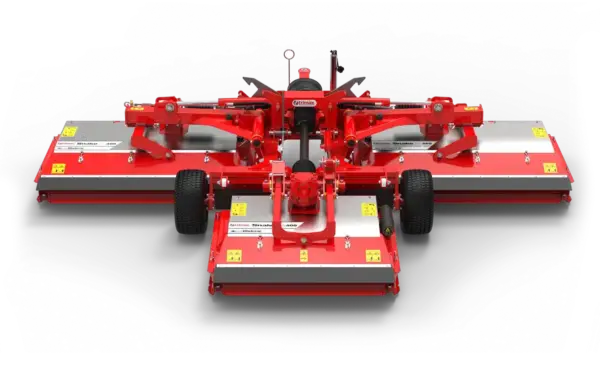

Trimax Snake 320

SKU: N/A Professional Turf Care

£29,150.00£31,225.00 (incl. VAT)

Manufacturer: Trimax

Mulch Kit

Mulch Kit

Mulch Kit

Mulch Kit

Bag Collector

Bag Collector

Bag Collector

Bag Collector

Product price
(incl. VAT)
Additional options total:
(incl. VAT)
Order total:
(incl. VAT)

“Snake series 2 – building on greatness”….

3.2 metre winged finishing mowers specifically designed for golf course and sports turf. World class cutting performance and articulation.

-Popular for golf course and fine sports turf applications
-3 articulating decks follow the contours of the ground minimizing scalping
-Automatic belt tensioners eliminate the need for belt adjustments and improve drive to the blades
-Zero turn allows continuous cutting while turning sharply for maximum productivity
-SteadFast sealed spindles have reduced the grease points and maintenance free pivot bushes help minimize downtime
-QuikLIFT enables mowing decks to be raised slightly for traversing paths without the need to disengage the PTO
-Full width rollers help reduce scalping in undulating conditions and uneven terrain
-The Snake is quiet and suitable for mowing in public spaces
-A single belt for each deck makes for easy maintenance
-Double joint 80 degree PTO shafts means the Snake can do zero turns
-Offering a wide cut but is also easy to transport on the road, wing locks ensure the wings are held firmly in place
-Rear rollers overlap for a clean striped finish, all rollers are the same diameter for a even cut
-Unlock the mower wings’ transport lock from the convenience of the tractor seat
-Unique design of the body and blades allows for faster mowing speeds in wet and heavy conditions
-Extremely low maintenance required and high quality parts used to reduce down time
-Easily removable belt covers to remove grass and debris from the belt cavity
-A stubless roller retention system for vastly improved alignment, bearing life, and replacement ease
-‘Lazerbladez’ provides a superior cut and is more cost effective then standard blades
-Smaller blade diameter increases spindle RPM leading to a finer clip and increased rate of clip
-Suitable for tractors with 35 horsepower minimum
-PTO driven gearbox drives the belt which powers the blade spindles
-High quality components used and great parts backup from the manufacturer
-Easy to adjust height via the threaded rod and height of cut gauge
-Industry leading 3 year warranty

Also available as a multi lift system (MLS) machine. The MultiLIFT System (MLS) is a combination of QuikLIFT and IndividualLIFT with the additional benefit of BiLIFT (rear deck-only mowing) for narrow gateways and driveways. Fitted with Drive Protect and timed blade spin-down for machinery protection and bystander safety.

Speak to one of our salesman for optional extras such as mulch kits, rollers scrapers, etc.

Additional information


MLS version, Standard

Product specification

Cutting Width 3234 mm (127″) No. Of Blade Spindles 9
Overall Width 3372 mm (133″) Approx. Weight 1280 kg
Overall Length 3500 mm (138″) Minimum PTO Output 35 hp
Transport Length 3160 mm (125″) Cut Height Range 10 – 100 mm (⅜” – 4”)
Transport Height 1860 mm (73″) Warranty (Years) 3
Transport Width 2100 mm (82 1/2″) Workrate (6 mph) 7 acres/hr
